JH06Q
Original price was: $300.00.$298.00Current price is: $298.00.
Description
| 产品名称 | 便携显示器 | |
| Model Name 产品型号 | JH06Q | |
| ID Photo 产品ID （渲染顶配）详情参照实物 | ||
| LCD Panel &Opitical 屏与光学 |
Display size 显示尺寸 | 16英寸 |
| Panel brand 面板品牌 | 华星光电 (CSOT) | |
| Panel type 面板类型 | LTPS TFT-LCD, 液晶模组 | |
| Active area display 显示区域（mm） | 344.678(W)×215.424(H) mm | |
| Scanning frequency 扫描频率 | 120Hz | |
| surface treatment 表面处理 | 雾面，Hard coating (3H)，反射率 6.5% (Max.) | |
| Brightness(Typical) 亮度 | 300 cd/m² (Typ.) | |
| Contrast(Typical) 对比度 | 1200 : 1 (Typ.) [透射] | |
| gamut 色域 | 1.07B , 100% sRGB | |
| Resolution (H x V) 分辨率 | 2560(RGB)×1600, WQXGA, 188PPI | |
| Aspect Ratio 屏幕比例 | 16:10 | |
| Response Time(Typical)响应时间 | 3(Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD) ms | |
| View Angles LR,UD(CR>10)可视角度 | 89/89/89/89 (Typ.)(CR≥10) 左/右/上/下 | |
| support technology 支持技术 |
AMD FREESYNC技术 | 支持 |
| GAME PLUS | 支持 | |
| PWM调光 | 兼容FREESYNC技术 | |
| Touch/pen-controlled触摸/笔控 | / | |
| G-SYNC | 支持 | |

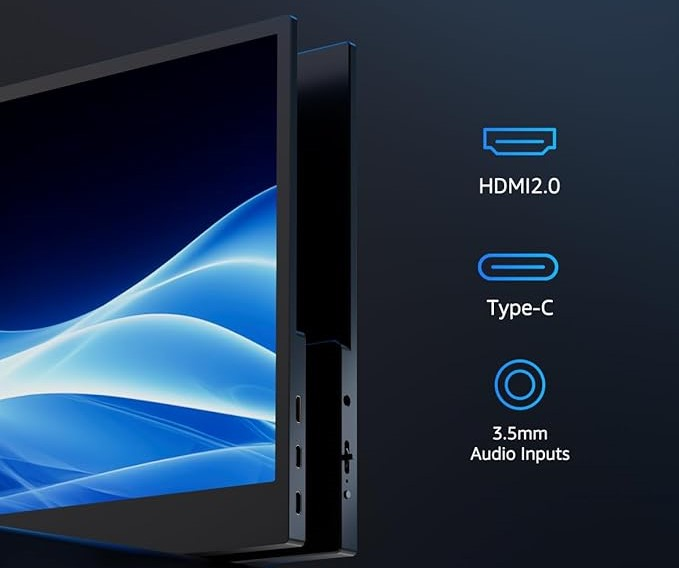

| TYPE-C | ×2 | |
| HDMI2.0 | ×1 | |
| switch | 支持 | |
| 音响 | 支持8Ω1W×2 | |
| 笔记本、平板电脑、PC主机 | 支持 | |
| 手机 | 支持(部分三星/华为/坚果手机Type-C一线投屏显示PC模式) 详细见详情图 | |
| Controls 控制 | Front Control 控制键 | 波轮按键：Menu > < EXIT Power |
| On Screen Display 菜单 | 参考通用OSD, | |
| Power ModeIndicator Light 指示灯模式 | 红蓝双灯 | |
| Interface 输入接口 | Input 1 | TYPE C-C×2 |
| Input 2 | MINI HDMI×1 | |
| Physical机构 | Shell material wa外壳材质 | 铝合金底壳/PC面框 |
| Dimension(W*D*H) 整机尺寸 | 354.65×241.3×10.9mm/354.65×241.3×5.5mm | |
| Packing Dimension(W*D*H) 包装尺寸 | 447.5×296×49.5mm | |
| Net Weight 净重 | 1111.16g | |
| Gross Weight 毛重 | 1948.9g | |
| Operating Condition 工作条件 | Temperature 温度 | 存储温度: -20 ~ 60 °C 工作温度: 0 ~ 50 °C |
| Humidity 湿度 | 20% ~ 85%, non-condensing | |
| Accessory 附件 | Power Cable 电源线 | USBA-C H=1.0M×1 |
| Adapter 适配器 | 5V3A×1 | |
| HDMI Cable | HDMI-MINI HDMI×1 | |
| TYPE C 3.1 Cable | TYPE C 3.1 H=1M×1 | |
| Active condenser pen主动电容笔 | / | |
| support支架 | / | |
| Leather holster 皮套 | YES. | |
| User Manual 说明书 | YES. | |
| Packing box包装盒 | YES. | |
| Quality requirements 质量要求 | Reliability 可靠性 | 年返修率≤1.0 |
| Failure rates 返修率 | 年返修率≤1.0 | |
